Description

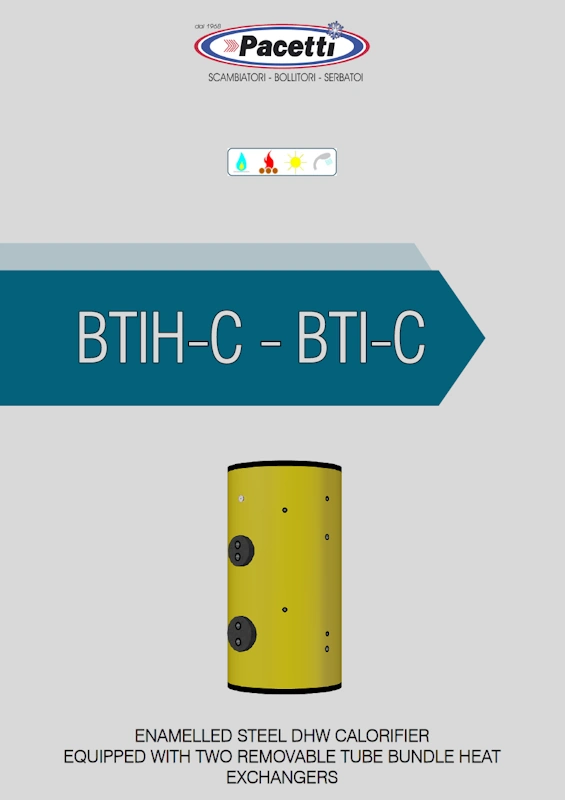

Calorifiers made of enameled steel with two removable tube bundle heat exchangers for production and storage of DHW. Designed for connection to one or two different primary energy sources.
The lower coil is appropriately sized to transfer the maximum exchangeable power to the entire water capacity contained in the tank; the upper coil, with a reduced exchange surface, is instead designed to maximize the integration of another energy source in order to reach the required temperature in the upper part of the tank and guarantee the correct domestic hot water demand even in the case of mixed solar and traditional generator systems.
The boilers in the BTIH-C | BTI-C range, available in capacities from 1000 to 5000 litres, are offered with tube bundle coils in AISI 304 stainless steel (on request AISI 316L) and are available in lowered and extra-lowered versions in the larger sizes to allow them to be placed in circumstances where the useful height is not suitable for the standard size.
The possibility of selecting between various operating pressures - up to 10 bar - and the availability of different external claddings for indoor or outdoor installation, extends their use to all the possible applications. Protection from galvanic currents is provided by the electronic anodes fitted as standard, which both save on costs of checking and replacing conventional magnesium anodes and ensure superior reliability and durability.
