Description
Combined solution comprising a hot water storage tank stacked on top of a smaller buffer vessel for hot & cold water inertial storage. An electronically controlled fresh water station is attached and connected to the hot water storage tank to produce DHW instantly.
This combo system is specifically designed for connection to Heat Pumps.

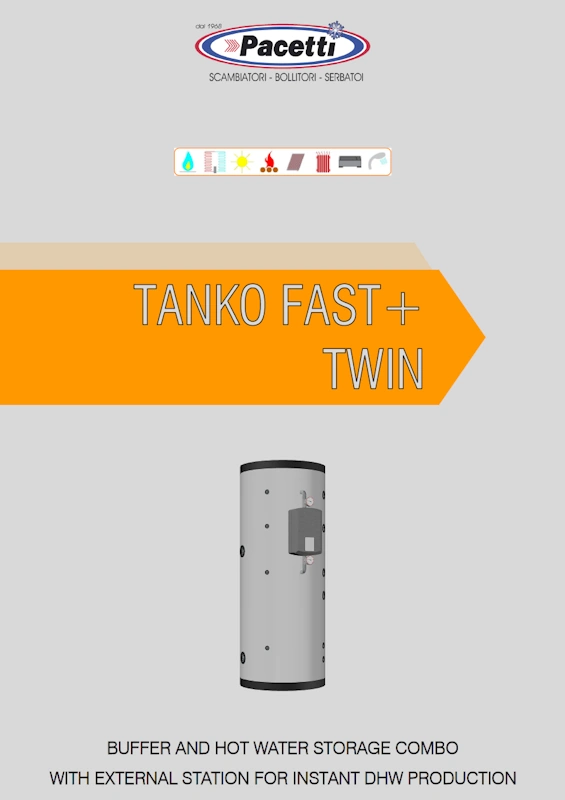

TANKO-G FAST+ TWIN combines two storage tanks in one unit:
- the lower carbon steel buffer vessel works as a thermal inertia during both winter and summer operation, optimising compressor start-ups
- the upper carbon steel hot water storage tank is combined with the ASAP fresh water station to meet all system requirements, even in multi energy source systems, ensuring the correct supply of Domestic Hot Water even at lower storage temperatures.
The automatic adjustement of the electronic circulator’s flow rate allows for a constant temperature supply in line with user demand and the temperature of the stored water.
TANKO-1 FAST+ TWIN version is provided with a large surface area built-in coil enabling connection to an additional supplementary energy source via heat transfer.
The rigid polyurethane insulation with PVC cladding, provides excellent insulation for both storage tanks, ensuring low heat loss and preventing condensation from forming on the lower tank during summer cooling.
