Application fields
Description

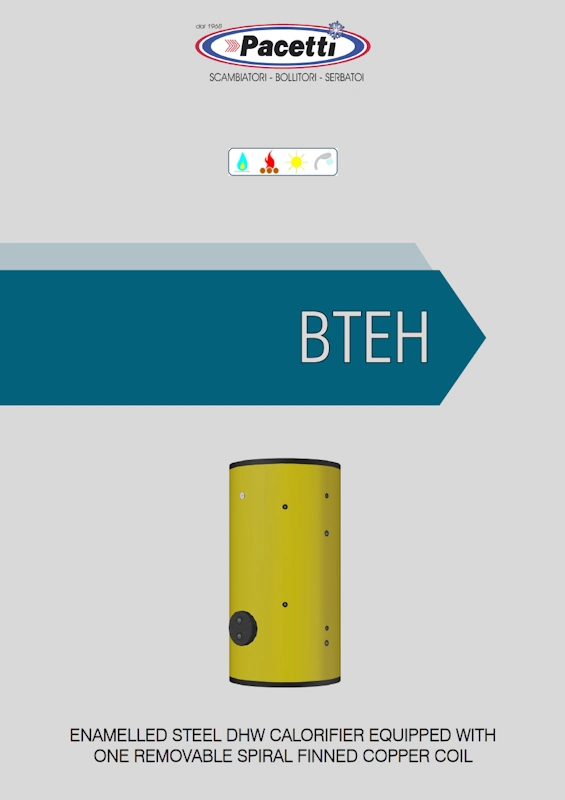

Calorifiers made of enamelled steel with one removable spiral finned copper coil for production and storage of DHW. Designed for connection to a single primary energy source.
The calorifiers of the BTEH are available from 200 to 2000 L as standard; size and number of coils can be increased upon request.
They are available, in the larger sizes, in vertical-low height version to allow them to be installed in rooms where the available height is not sufficient for the standard design.
The BTEH series calorifiers are equipped with spiral finned copper coils that significantly increase the heat exchange surface area relative to the space occupied, resulting in higher thermal efficiency.
The possibility of selecting between various operating pressures - up to 10 bar - and the availability of different external claddings for indoor or outdoor installation, extends their use to all the possible applications.
Protection from galvanic currents is provided by the electronic anodes fitted as standard, which both save on costs of checking and replacing conventional magnesium anodes and ensure superior reliability and durability.
Gallery
