Application fields
Description

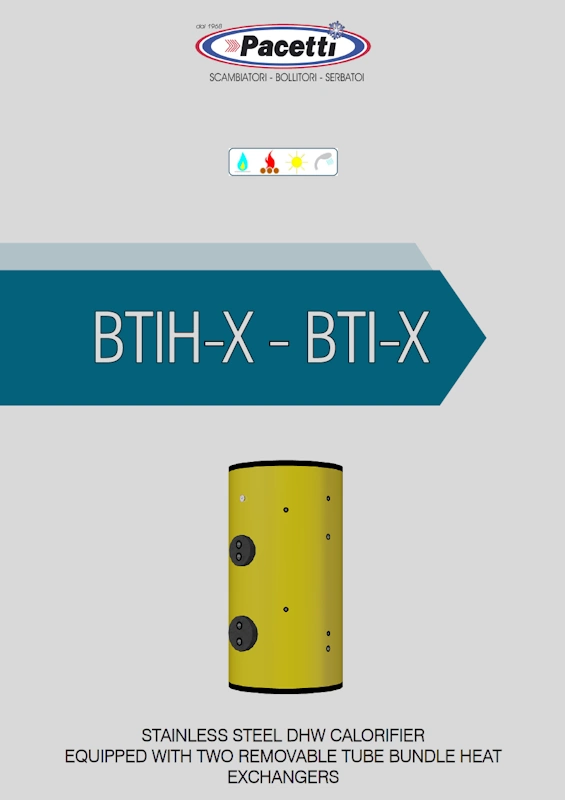

Calorifiers made of Stainless Steel AISI 316L pickled and passivated with two removable tube bundle heat exchangers for production and storage of DHW. Designed for connection to two different primary energy sources.
The lower coil is suitably sized to deliver the maximum heat transfer capacity to the entire volume of water contained in the tank; the upper coil, with a reduced heat exchange surface area, is instead designed to optimise the integration of another energy source in order to reach the desired temperature in the upper part of the tank and ensure the correct supply of domestic hot water even in systems using a combination of solar and traditional generators.
The calorifiers of the BTIH-X | BTI-X range stand out for the wide choice of capacities, from 1000 to 5000 L as standard and over upon request.
They are available, in the larger sizes, in vertical-low and vertical extra-low versions to allow them to be installed in circumstances where the available height is not sufficient for the standard measurement. The two tube bundle heat exchangers, made of Stainless Steel AISI 316L as standard.
The possibility of selecting between various operating pressures - up to 10 bar - and the availability of different external claddings for indoor or outdoor installation, extends their use to all the possible applications.
